- 鏈條介紹
- 鏈條參數(shù)

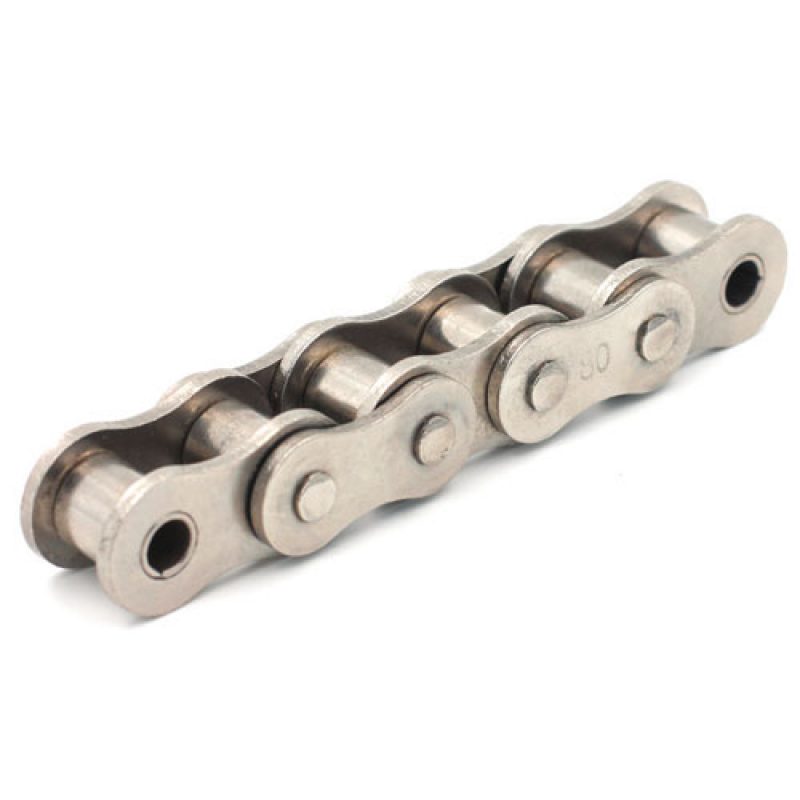

所有碳鋼材料組成的鏈條均表面處理，零件表面經過鍍鎳處理，可適合在室外雨水侵蝕等場合使用，但不能防止?jié)獾幕瘜W液體腐蝕。
| 鏈號 | 節(jié)距 | 滾子直徑 | 內節(jié)內寬 | 銷軸直徑 | 銷軸長度 | 銷軸長度 | 內鏈板高度 | 鏈板厚度 | 破斷載荷 | 每米長重 |
| Chain No. | P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q | q |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kg/m | |
| 04BNP | 6.00 | 4.00 | 2.80 | 1.85 | 6.80 | 7.80 | 5.00 | 0.60 | 3/682 | 0.11 |
| 05BNP | 8.00 | 5.00 | 3.00 | 2.31 | 8.20 | 8.90 | 7.10 | 0.80 | 5/1136 | 0.20 |
| #06BNP | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | 9.0/2045 | 0.41 |
| 08BNP | 12.70 | 8.51 | 7.75 | 4.45 | 16.7 | 18.20 | 11.80 | 1.60 | 18/4091 | 0.69 |
| 10BNP | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.90 | 14.70 | 1.70 | 22.4/5091 | 0.93 |
| 12BNP | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.20 | 16.00 | 1.85 | 29/6591 | 1.15 |
| 16BNP | 25.40 | 15.88 | 17.02 | 8.28 | 36.1 | 37.40 | 21.00 | 4.15/3.1 | 60/13636 | 2.71 |
| 20BNP | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45.00 | 26.40 | 4.5/3.5 | 95/21591 | 3.70 |
| 24BNP | 38.10 | 25.40 | 25.40 | 14.63 | 53.4 | 57.80 | 33.20 | 6.0/4.8 | 160/36364 | 7.10 |
| 28BNP | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.50 | 36.70 | 7.5/6.0 | 200/45455 | 8.50 |
| 32BNP | 50.80 | 29.21 | 30.99 | 17.81 | 66.0 | 71.00 | 42.00 | 7.0/6.0 | 250/56818 | 10.25 |
